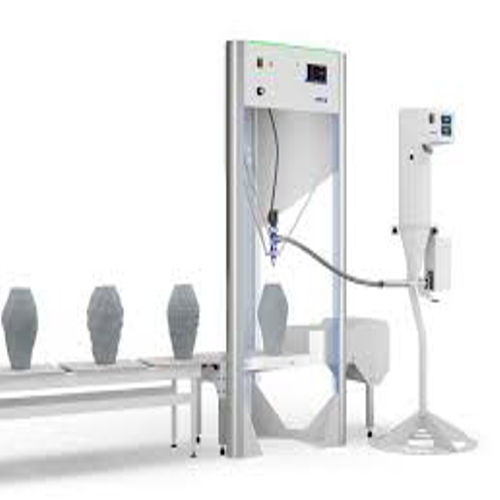

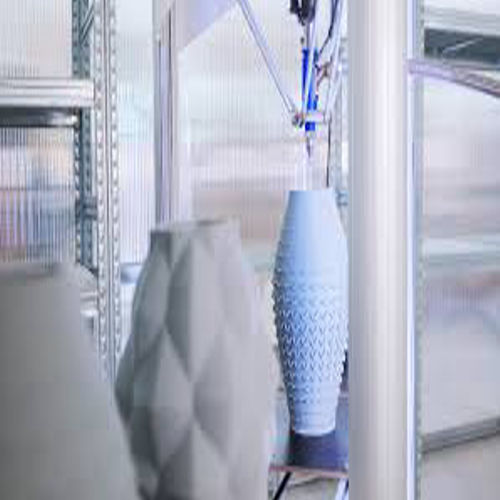

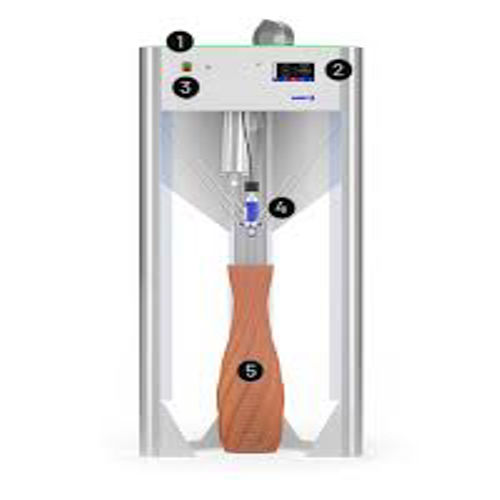

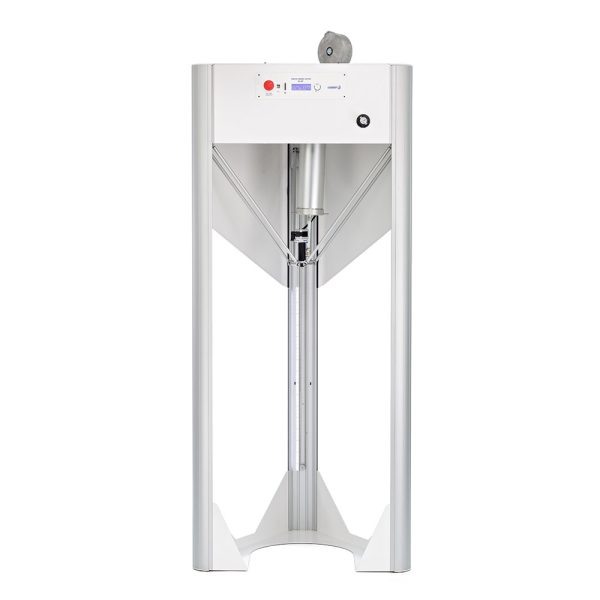

Delta WASP 40100 Clay

 Major Benefits

Large Scale Ceramic Printing

• Prints tall objects up to 1 meter high excellent for architectural pieces, vases, and sculptures. OmniFab

 Open and Accessible Design

• Three-sided open frame allows easy interaction during printing, trimming, and adjustment. Deltawasp

 High-Flow Extrusion

• Supports multiple nozzle sizes (1.58 mm) including XL extruders for faster, bigger deposits. Deltawasp

 Print Resume / Continual Printing

• Free Zed and resurrection system features allow restart from a specific height after interruptions (e.g., power loss). 3DPro

 Print On Floor or Bed

• Can print directly on the floor for huge builds or on removable print beds for smaller pieces. OmniFab

 Industry-Compatible Control

• Works with standard slicing software and supports multiple OS platforms. 4Atoms

 Typical Applications

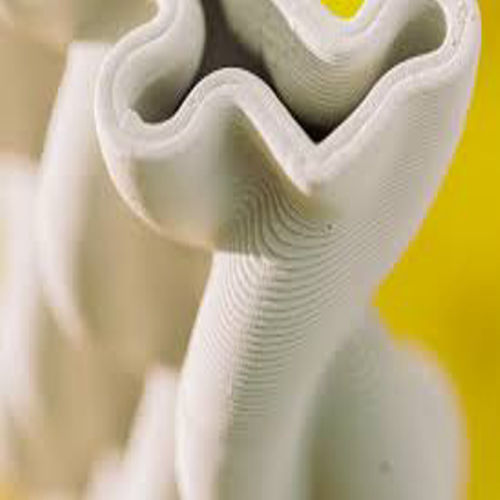

 Ceramics & Pottery

• Porcelain, clay, earthenware, gres, refractory bodies useful for functional pottery and artistic forms.

 Architectural Prototypes

• Creates large ceramic structures or parts for design, facades, and scaled architecture.

 Art & Sculptures

• Fine art studios use it to print statues, installations, and custom art with ceramic materials.

 Research & Education

• Universities and labs utilize it for material science and large-format clay printing research.

 Typical Usage & Workflow

1. Material Prep: Clay or ceramic paste is prepared with proper moisture and de-aired consistency.

2. Slicing: Design file (.stl/.obj) is sliced into gcode with layer settings.

3. Printer Setup: Load paste and select nozzle; connect air compressor.

4. Printing: Printer deposits clay layer by layer; interaction possible during printing due to open frame.

5. Post-Processing: Dry, trim, fire/kiln, and glaze as needed.

Frequently Asked Questions (FAQs)

Q: Can the printer handle materials other than clay?
Yes porcelain, earthenware, gres, refractory mixes, and similar dense ceramic pastes.

Q: Do I need a compressor?
Yes an air compressor is required to drive the clay extrusion at consistent pressure ( 8 bar).

Q: What nozzle sizes are available?
Standard: 1.5-3 mm; Optional XL: up to 8 mm for faster and thicker deposition.

Q: Whats the layer resolution?
Typically around 0.5 mm minimum; dependent on material and nozzle.

Q: Can prints be resumed after power loss?
Yes rescue/resume systems allow restarting from a specific height.

Q: Is it suitable for professional ceramic production?
Yes especially with Continuous Feeding or Production add-ons for higher throughput.

Q: Does it need special software?
No works with common slicing tools (Cura, Simplify3D, Slic3r).
